Where is the 2013 Ford F150 Output Speed Sensor Located: Quick Guide
If you own a 2013 Ford F150 and are facing transmission issues, knowing where the output speed sensor is located can save you time and money. This small but crucial part helps your truck monitor speed and shift gears smoothly.
Without it, your vehicle might struggle with performance or display warning lights. You’ll discover exactly where to find the output speed sensor on your F150, making any repairs or checks much easier. Keep reading to get the clear, simple answers you need to keep your truck running strong.
Credit: www.youtube.com
Output Speed Sensor Basics
The output speed sensor is a small but important part of your 2013 Ford F150. It helps the truck’s computer know how fast the transmission is turning. This sensor sends signals that control shifting and engine performance.
Without a working output speed sensor, your truck may shift roughly or have trouble accelerating. The sensor helps keep the transmission running smoothly and protects it from damage.
What Does The Output Speed Sensor Do?
The sensor measures the speed of the transmission’s output shaft. It sends this data to the truck’s computer. The computer uses this information to time gear changes correctly. This improves fuel efficiency and driving comfort.
Where Is It Located?

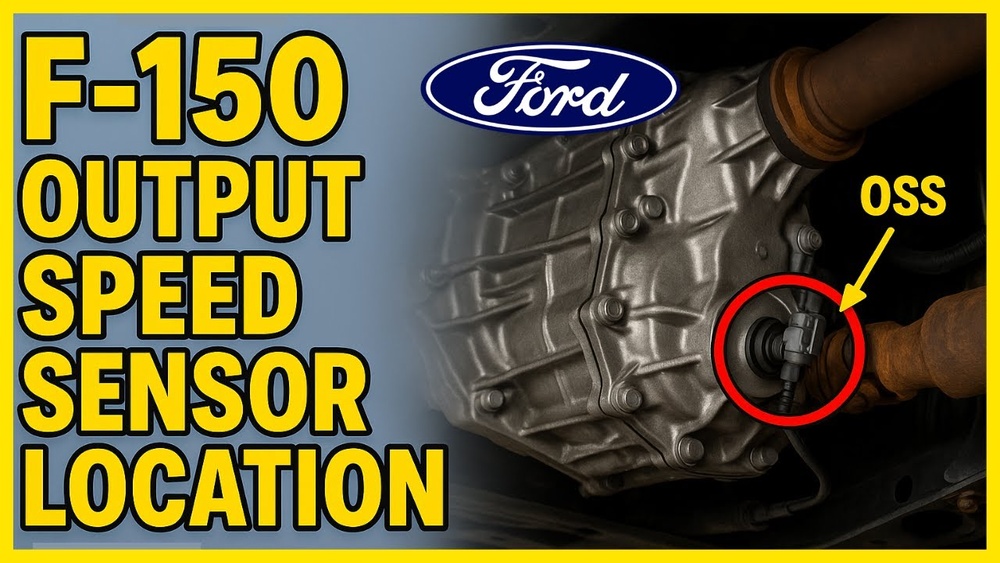

In a 2013 Ford F150, the output speed sensor is near the transmission. It is usually mounted on the tailshaft housing. This position allows it to read the spinning speed of the shaft easily.
Signs Of A Bad Output Speed Sensor
Faulty sensors cause rough shifting or delayed gear changes. The check engine light may turn on. You might feel the truck hesitate or jerk while driving. These signs point to a sensor problem.
Credit: www.f150forum.com
Location On The 2013 Ford F150
The output speed sensor plays a key role in your 2013 Ford F150’s transmission system. It helps the vehicle measure the speed of the transmission output shaft. Knowing the exact location of this sensor makes repairs and inspections easier.
The output speed sensor is placed in a spot that is easy to access for most mechanics. It sits near the transmission, connected to the transmission housing. This position allows it to monitor the rotation speed accurately.
Where To Find The Sensor On The Transmission
The sensor is located on the driver’s side of the transmission. It is usually mounted near the tailshaft housing. This area is close to the rear of the transmission, just before the driveshaft.
You can spot the sensor by looking for a small electrical connector plugged into the transmission. The sensor itself is a small, cylindrical part with a wire harness attached.
Accessing The Output Speed Sensor
To reach the sensor, you need to raise the truck safely. Use jack stands or a lift to gain access under the vehicle. The sensor is visible once you look near the transmission’s rear.
It may be necessary to remove a few components like shields or covers for easier access. Always disconnect the battery before working on electrical parts to avoid shocks.
Signs Of A Faulty Output Speed Sensor Location
Sometimes dirt or damage can affect the sensor’s performance. The truck might show transmission problems or warning lights on the dashboard. Knowing the exact location helps diagnose these issues quickly.
Checking the sensor regularly prevents bigger transmission problems. If the sensor is loose or damaged, it needs to be replaced or tightened at its location.
Steps To Access The Sensor
Accessing the output speed sensor on a 2013 Ford F150 is a straightforward process. This sensor is vital for the transmission’s proper function. Knowing where it is and how to reach it helps in quick repairs or checks. Follow these steps carefully to locate and access the sensor safely.
Prepare Your Vehicle
Park the truck on a flat surface. Turn off the engine and remove the keys. Engage the parking brake to keep the vehicle still. Let the engine cool if it was running.
Lift The Truck Safely
Use a jack to lift the front of the truck. Place jack stands under the frame for safety. Never rely on the jack alone. Ensure the truck is stable before crawling underneath.
Locate The Output Speed Sensor
The sensor is near the transmission. Look on the driver’s side of the transmission housing. It connects to a small wire harness. The sensor looks like a small plug screwed into the transmission.
Disconnect The Sensor
Press the tab on the sensor’s connector. Gently pull the connector away from the sensor. Avoid pulling the wires to prevent damage. The sensor is now ready for inspection or replacement.
Credit: www.f150forum.com
Tips For Replacement And Maintenance
Replacing and maintaining the output speed sensor on a 2013 Ford F150 is important for smooth vehicle operation. Proper care helps avoid transmission problems and costly repairs. Follow clear steps to make the process easier and safer.
Handle the sensor with care to prevent damage. Keep tools and parts clean to ensure a good connection. Regular checks help spot issues early, saving time and money.
Preparing The Vehicle For Sensor Replacement
Park the truck on a flat surface. Turn off the engine and let it cool down. Disconnect the battery to avoid electrical shocks. Use jack stands for safety if lifting the vehicle.
Removing The Old Output Speed Sensor
Locate the sensor near the transmission. Clean the area to prevent dirt from entering. Unplug the sensor connector gently. Unscrew the sensor carefully and remove it without force.
Installing The New Output Speed Sensor
Check the new sensor for any damage. Insert it carefully into the slot. Tighten screws to the correct torque. Reconnect the electrical plug securely to avoid loose contacts.
Routine Maintenance Tips For Longevity
Inspect the sensor and wiring regularly. Clean any dirt or debris around the sensor area. Avoid harsh chemicals near the sensor. Replace the sensor promptly if signs of wear appear.
Frequently Asked Questions
Where Is The Output Speed Sensor On A 2013 Ford F150?
The output speed sensor is located on the transmission housing. It sits near the tailshaft of the transmission. This position helps it measure the output shaft speed accurately.
How Can I Identify The Output Speed Sensor On My Ford F150?
Look for a small, cylindrical sensor attached to the transmission. It usually has a wiring connector plugged into it. The sensor is secured with a bolt or clip.
What Does The Output Speed Sensor Do In A 2013 Ford F150?
It measures the speed of the transmission’s output shaft. This data helps the vehicle manage shifting and speed displays. It plays a key role in smooth transmission operation.
Can A Faulty Output Speed Sensor Cause Transmission Problems?
Yes, a bad sensor can cause shifting issues or speedometer errors. It may trigger warning lights on the dashboard. Replacing the sensor can often fix these problems.
Conclusion
Finding the output speed sensor on a 2013 Ford F150 is straightforward. It sits on the transmission, near the tailshaft. Knowing its location helps with quick repairs and checks. This sensor plays a key role in your truck’s shifting and speed readings.
Regular inspection can prevent bigger problems later. Keep your F150 running smoothly by staying aware of this part. Simple steps save time and money. Now you can handle basic truck maintenance with confidence.
